Infusion & Syringe Systems
100% In-House Manufactured
Model Reference: syringe-infusion-pump

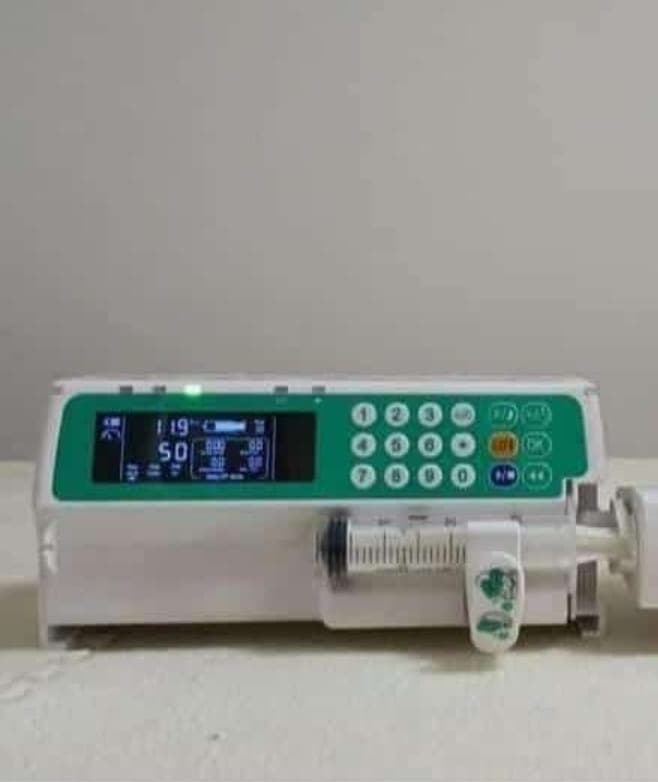

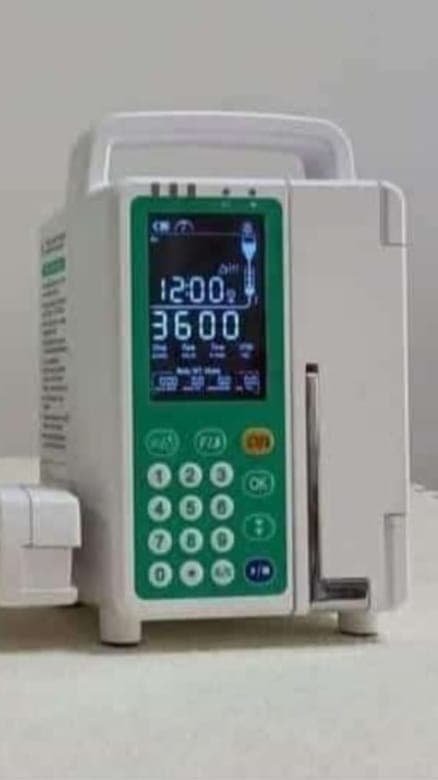

Syringe & Volumetric Infusion Pump System
High-Precision Micro-Infusion & Syringe Delivery System with Comprehensive Drug Library and Anti-Bolus Safety
An indigenously developed smart dual-channel infusion and syringe pump platform engineered for critical care, postoperative care, oncology, and anaesthesia delivery. Featuring ultra-precise stepper motor drive mechanics, automatic syringe size detection (2ml to 60ml), real-time dynamic pressure monitoring, and programmable dose-rate calculators for fail-safe intravenous medication administration.
Key Clinical Features & Capabilities
High-precision micro-step motor driving technology delivering accurate infusion rates from 0.01 mL/h to 1500 mL/h
Automatic syringe brand and size recognition (compatible with standard 2mL, 5mL, 10mL, 20mL, 30mL, 50/60mL syringes)
Dual infusion mode support: Flow Rate mode, Time mode, Body Weight mode, and Multi-Rate dose profiles
Integrated Comprehensive Drug Library with custom concentration presets and hard/soft dosing limits
Dynamic Occlusion Pressure Detection with 12 selectable sensitivity levels and automatic anti-bolus pressure relief
Stackable modular interlock chassis for multi-channel drug administration towers on standard IV poles
Dual power architecture with up to 6 hours continuous battery operation per unit
100% Customizable Engineering AvailableBespoke R&D
Need specialized modifications for your hospital? Because every part and system of this device is designed and manufactured directly by Panakeia itself, we can customize gas circuits, display telemetry, software protocols, and mounting ergonomics to match your clinical workflow.
Request Custom Hospital ConfigurationsDirect Hospital Procurement Desk: Sign in to view direct phoneMon-Sat 9AM-6PM IST
Engineering Parameters
Complete Technical Specifications
Verified against IEC 60601-1 and ISO 80601-2-13 medical electrical equipment safety standards.
| Parameter / Specification | Clinical Tolerance & Range |
|---|---|
| Flow Rate Range | 0.01 - 1500.00 mL/h (Syringe) / 0.1 - 2000.00 mL/h (Infusion) |
| Infusion Accuracy | ±2% (Mechanical Precision: ±1%) |
| Syringe Compatibility | 2mL, 5mL, 10mL, 20mL, 30mL, 50/60mL standard syringes |
| Delivery Modes | Rate Mode, Time Mode, Weight-based Dose Mode, Bolus Mode |
| Occlusion Levels | 12 Configurable pressure thresholds with Anti-Bolus |
| Display | Bright 3.5" Color LCD with intuitive status indicators |
| Battery Life | 6+ Hours continuous runtime @ 25 mL/h |
Clinical Environments
Recommended Clinical Applications
High-Precision Critical Care Intravenous Drug Administration
Anaesthesia Induction & Continuous Sedation Delivery
Oncology Chemotherapy & Parenteral Nutrition Support
Neonatal & Paediatric Micro-Dosing Regimens
Manufacturing Integrity
100% In-House Parts Manufacturing
All structural, pneumatic, electronic, and software assemblies for this device are manufactured directly by Panakeia Medtech itself at our dedicated medical facility in Visakhapatnam.
ISO 13485:2016 CDSCO Compliant MSME Registered Make in India
