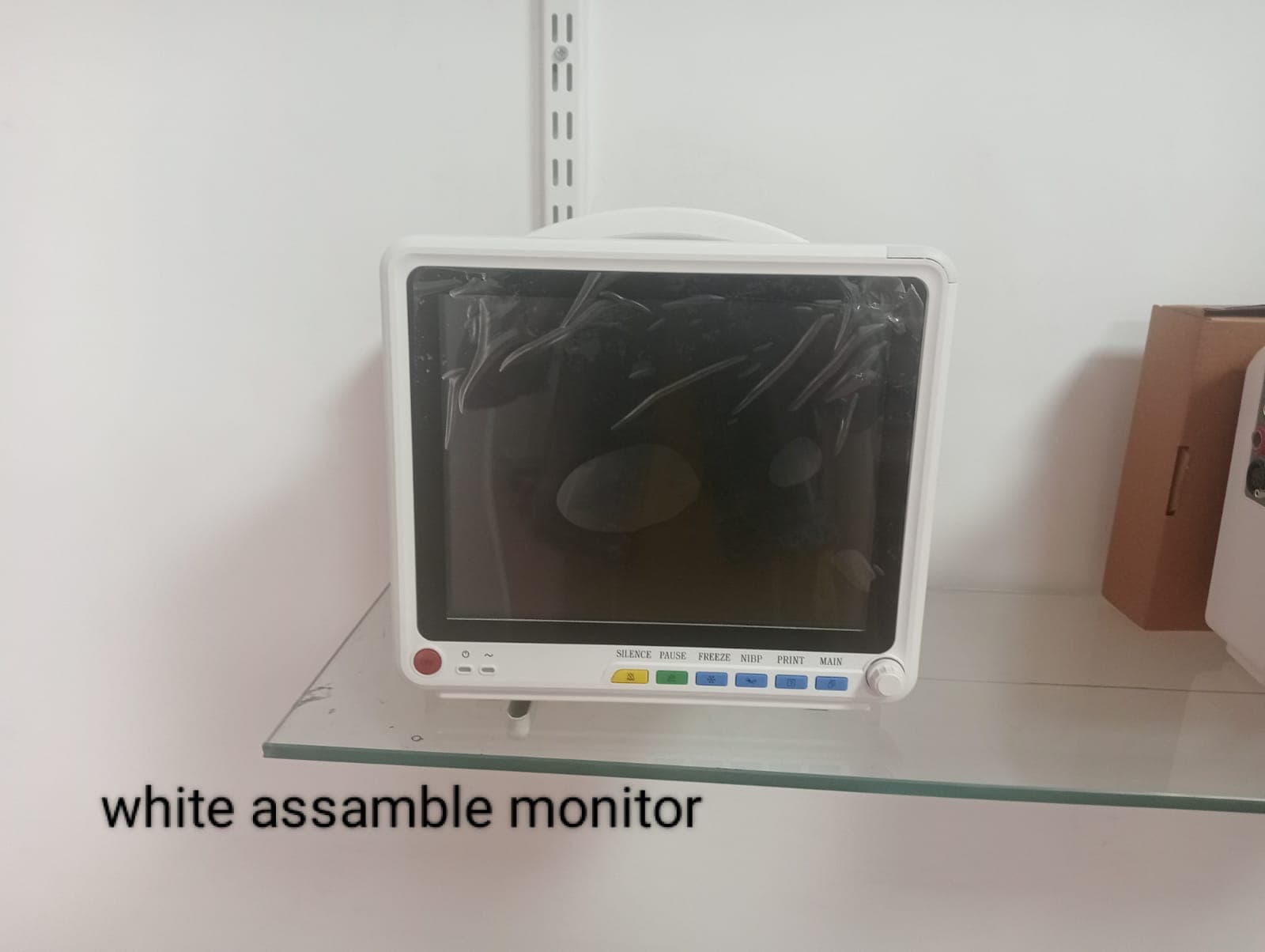

Multi-Parameter Patient Monitor
High-Precision 12.1" Multi-Parameter Vital Signs Monitor with Anti-Motion SpO2 & Arrhythmia Analysis
Indigenously engineered for continuous real-time physiological monitoring across high-acuity surgical theaters and intensive care units. Provides high-fidelity monitoring of ECG (3/5-lead with ST segment analysis and arrhythmia detection), SpO2 with anti-motion perfusion index, NIBP, Respiration, Temperature, and optional Dual IBP and End-Tidal CO2 (EtCO2). Equipped with a glare-free color touchscreen, intuitive alarm management, and central nursing station connectivity.
Key Clinical Features & Capabilities
12.1-inch High-Resolution Anti-Glare Color Touchscreen with customizable multi-waveform display
Advanced ECG Analysis: 3/5-lead ECG with 23 arrhythmia classifications and real-time ST-segment analysis
Anti-motion & Low-perfusion SpO2 technology with pulse modulation tone and perfusion index (PI)
Smart NIBP measurement with dual over-pressure protection and automatic interval cycles
Dual-channel temperature monitoring, respiration impedance telemetry, and optional EtCO2 / IBP modules
360-degree top visual alarm light bar with multi-level audible clinical alerts
High-capacity rechargeable lithium-ion battery delivering 4+ hours continuous monitoring
100% Customizable Engineering AvailableBespoke R&D
Need specialized modifications for your hospital? Because every part and system of this device is designed and manufactured directly by Panakeia itself, we can customize gas circuits, display telemetry, software protocols, and mounting ergonomics to match your clinical workflow.
Request Custom Hospital ConfigurationsDirect Hospital Procurement Desk: Sign in to view direct phoneMon-Sat 9AM-6PM IST
Engineering Parameters
Complete Technical Specifications
Verified against IEC 60601-1 and ISO 80601-2-13 medical electrical equipment safety standards.
| Parameter / Specification | Clinical Tolerance & Range |
|---|---|
| Display | 12.1" Color TFT Capacitive Touchscreen (800x600 px) |
| Parameters Monitored | ECG, SpO2, NIBP, Respiration, 2-Temp, Pulse Rate, Optional: IBP, EtCO2 |
| ECG Leads | 3/5 Lead with Arrhythmia & ST Analysis |
| SpO2 Range | 0 - 100% (Resolution: 1%, Accuracy: ±2%) |
| NIBP Range | 10 - 270 mmHg with Overpressure Safety Release |
| Trend Storage | 160 hours tabular & graphic trends, 1000 NIBP records |
| Battery Autonomy | 4+ Hours Lithium-Ion Internal Pack |
Clinical Environments
Recommended Clinical Applications
Continuous OT Intraoperative Physiological Monitoring
Critical Care & Intensive Care Unit (ICU) Telemetry
Post-Anesthesia Care Units (PACU) & Surgical Recovery Beds
Diagnostic Cardiology & Inpatient Vital Sign Tracking
Manufacturing Integrity
100% In-House Parts Manufacturing
All structural, pneumatic, electronic, and software assemblies for this device are manufactured directly by Panakeia Medtech itself at our dedicated medical facility in Visakhapatnam.
ISO 13485:2016 CDSCO Compliant MSME Registered Make in India
