ANAEVENT Ascending Bellows Anaesthesia Ventilator

Name: ANAEVENT Ascending Bellows Anaesthesia Ventilator
Brand: Panakeia

Versatile Ascending Bellows Anaesthesia Ventilator with 7-Inch Touchscreen for Operation Theatres

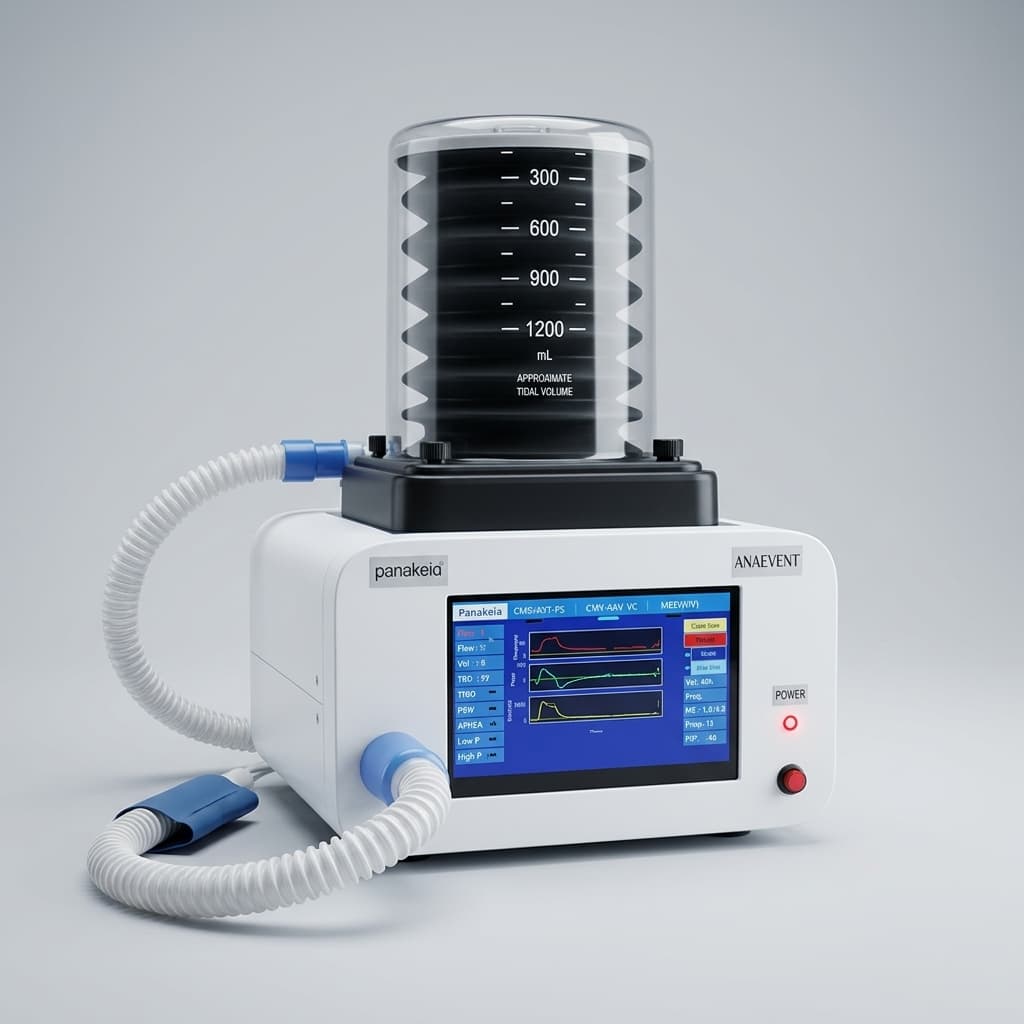

The Panakeia ANAEVENT is a versatile, microprocessor-based, electronically controlled and pneumatically driven ascending bellows ventilator specifically designed for operation theatres. Calibrated for both low and high flow anaesthetic applications, it supports IPPV, Manual, PCV, PSV, and SIMV modes for adult and pediatric patients with clear calibrated bellows (300 to 1200 mL), real-time pressure-time graph telemetry, and universal compatibility with any anaesthesia machine frame.

Key Clinical Features & Capabilities

7-inch Color Touchscreen Display with real-time Peak Pressure & Pressure-Time waveforms

Clear ascending silicone bellows lung cylinder calibrated up to 1200 mL with high accuracy calibration

Electronically controlled pneumatic drive (Oxygen or Air at 60 PSI) for both low and high flow anaesthesia

Ventilation modes: IPPV, Manual, Standby, with optional PCV, PSV, and SIMV modes

Compatible with all breathing circuits: Open circuit, Closed circuit circle absorber, and Bain's circuit

Automatic panel lock and comprehensive safety alarms (Apnea, High/Low Pressure, Power Failure)

Battery as per standard 3.5 hrs (hot-swappable internal rechargeable battery delivering continuous surgical ventilation backup)

Compact ergonomic chassis (280x280x150 mm, 5 kg) suitable for top-shelf workstation mounting or trolley attachment

100% Customizable Engineering AvailableBespoke R&D

Need specialized modifications for your hospital? Because every part and system of this device is designed and manufactured directly by Panakeia itself, we can customize gas circuits, display telemetry, software protocols, and mounting ergonomics to match your clinical workflow.

Request Custom Hospital Configurations

Request Quotation & Demo

Download Spec Sheet (PDF)

Direct Hospital Procurement Desk: Sign in to view direct phoneMon-Sat 9AM-6PM IST

Engineering Parameters

Complete Technical Specifications

Verified against IEC 60601-1 and ISO 80601-2-13 medical electrical equipment safety standards.

Parameter / Specification	Clinical Tolerance & Range
Operating Drive Pressure	60 PSI (Pneumatically driven by Oxygen or Air)
Ventilation Modes	IPPV, Manual, Standby (Optional: PCV, PSV & SIMV)
Tidal Volume Range	50 mL to 1200 mL (Bellows graduated 300 to 1200 mL)
Respiratory Frequency	0 to 80 BPM
Inspiratory Time & I:E Ratio	Insp. Time: 0 to 5.0s \| I:E Ratio: Programmable
PIP Limit	10 to 60 cmH2O with Pressure-Time monitoring
Display	7" Color Touchscreen with live curves
Battery Autonomy	Battery as per standard 3.5 hrs continuous runtime
Dimensions & Weight	280 x 280 x 150 mm \| 5 kg
Compatibility	Universal compatibility with any standard Anaesthesia Workstation
Certifications	ISO 9001:2015, ISO 13485:2016, CE & CDSCO Certified

Clinical Environments

Recommended Clinical Applications

High-Acuity Medical & Surgical Intensive Care Units (ICU)

High Flow Nasal Cannula (HFNC) Oxygen Therapy Suites

Post-Operative Recovery & Long-Term Mechanical Ventilation

Critical Patient Transport & Emergency Department Stabilization

Manufacturing Integrity

100% In-House Parts Manufacturing

All structural, pneumatic, electronic, and software assemblies for this device are manufactured directly by Panakeia Medtech itself at our dedicated medical facility in Visakhapatnam.

ISO 13485:2016 CDSCO Compliant MSME Registered Make in India
